4.6 Inch 320x960 RGB Bar Stripe TFT LCD Module 4.58'' 40Pin ST7701S PCAP SPI 18RGB

Name: 46 Inch 320x960 RGB Bar Stripe TFT LCD Module 458 40Pin ST7701S PCAP SPI 18RGB
Brand: ESEN
Price: 1 USD

Buy cheap 4.6 Inch 320x960 RGB Bar Stripe TFT LCD Module 4.58'' 40Pin ST7701S PCAP SPI 18RGB product

Brand Name : ESEN

Model Number : TX046-40RA-A1

Certification : ISO9001/ISO14001

Place of Origin : Shenzhen China

MOQ : No MOQ

Price : can be negotiated

Payment Terms : L/C,T/T

Supply Ability : 300K/mth

Delivery Time : 7~14 working days

Packaging Details : Cartons, Capboard, EPE, Blister Tray.

Panel Size : 4.58 inch

Resolution : 320(RGB)x960

Display Mode : Normally Black

Pixel pitch : 0.09525(H) × 0.09525(V)

Pixel Arrangement : RGB Vertical Stripe

Viewing direction : Free

Module outline dimension : 41.57 (H)*118.8 (V)*2.5(D)

LCD AA : 36.77 (H)* 110.30 (V)

TP VA : --

luminance : 300cd/㎡(TYP)

Colors : 16.7M

Driver IC : ST7701S

Interface : RGB /MIPI/SPI

Operating Temperature : -20℃~ +70℃

Storage Temperature : -30℃~ +80℃

FPC Connecting Method : 40 Pin Plug in FPC

Customization : FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points)

Contact Now

4.6 Inch 320x960 RGB Bar Stripe TFT LCD Module Screen 4.58 inch 40Pin IPS LCD Display ST7701S Custom Capacitive Touch Panel PCAP SPI 18RGB

We believe that TX046-40RA-A1 offers an unbeatable combination of quality, performance, and value. If you have any questions about this product or would like to learn more about how it can benefit your business, please don't hesitate to contact us. We are dedicated to providing excellent customer service and helping our customers achieve their business goals.

Thank you for considering TX046-40RA-A1 We look forward to the opportunity to work with you and help you achieve success.

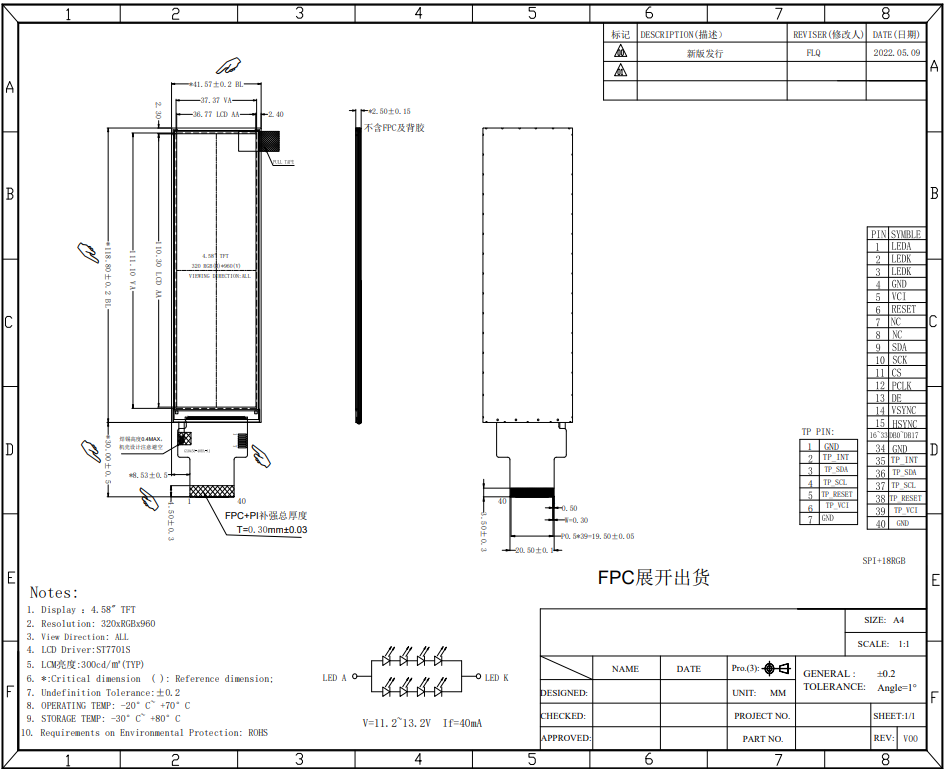

Mechanical Drawing

4.6 Inch 320x960 RGB Bar Stripe TFT LCD Module 4.58'' 40Pin ST7701S PCAP SPI 18RGB

INTERFACE SIGNAL

ELECTRO-OPTICAL CHARACTERISTICS

4.6 Inch 320x960 RGB Bar Stripe TFT LCD Module 4.58'' 40Pin ST7701S PCAP SPI 18RGB

ABSOLUTE MAXIMUM RATINGS

4.6 Inch 320x960 RGB Bar Stripe TFT LCD Module 4.58'' 40Pin ST7701S PCAP SPI 18RGB

* The absolute maximum rating values of this product are not allowed to be exceeded at any times. Should a module be used with any of the absolute maximum ratings exceeded, the characteristics of the module may not be recovered, or in an extreme case, the module may be permanently destroyed.

FAQ

1. Q: What is your company's experience and reputation in the industry?

A: Our company has been in business for 15 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.

2. Q: Are there any certifications or standards that the product meets?

A: Yes, our product meets several industry certifications and standards, ISO9001 Certificate; RoHS Environmental Certification;
